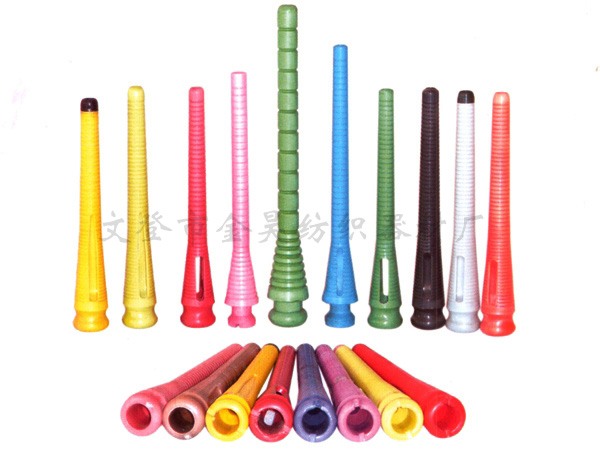

Weft tube
Details
：
Material: Made of imported polymer engineering plastics
Features: It has bending resistance, impact resistance and high temperature resistance. High speed operation of 18000-22000 revolutions per minute, no deformation, no jumping tube. Features such as smooth surface and bright color, suitable for steaming process.
Note: According to customer requirements, there are various types of wire trunking and color head.
Features: It has bending resistance, impact resistance and high temperature resistance. High speed operation of 18000-22000 revolutions per minute, no deformation, no jumping tube. Features such as smooth surface and bright color, suitable for steaming process.
Note: According to customer requirements, there are various types of wire trunking and color head.
|
NO.
|

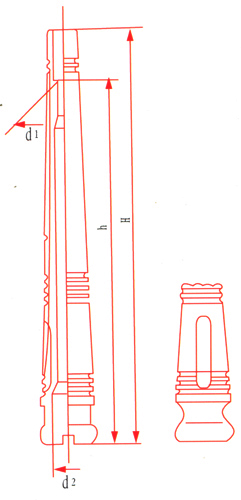

Size（）
|
Material
|
|||
|
H
|
d1
|
h
|
d2
|
||
|
JLD.W-01
|
180
|
4.23
|
152
|
16.40
|
PC.ABS
|
|
JLD.W-02
|
180
|
4.23
|
147
|
16.40
|
PC.ABS
|
|
JLD.W-03
|
180
|
5.08
|
165.5
|
16.40
|
PC.ABS
|
|
JLD.W-17
|
190
|
4.23
|
152
|
16.40
|
PC.ABS
|
|
JLD.W-18
|
190
|
4.23
|
147
|
16.40
|
PC.ABS
|
|
JLD.W-19
|
190
|
5.08
|
165.5
|
16.40
|
PC.ABS
|
|
JLD.W-20
|
190
|
6.11
|
177.5
|
17.0
|
PC
|
|
JLD.W-34
|
190
|
(5)
|
|
8
|
PP
|
|
JLD.W-45
|
190
|
(5)
|
|
8
|
PC.ABS
|
|
JLD.W-44
|
205
|
(5)
|
|
8
|
PP
|
|
JLD.W-43
|
225
|
(7.2)
|
|
16.40
|
PC.ABS
|
