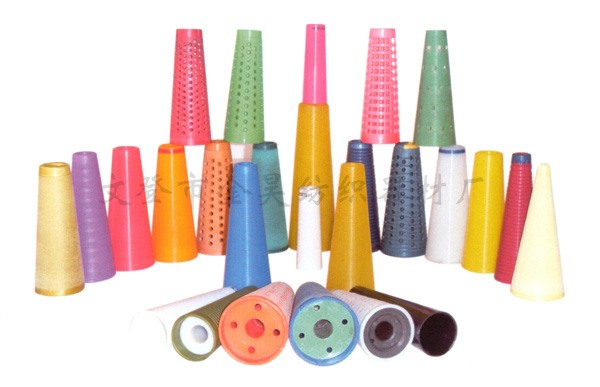

Pagoda tube
Details
：
Material: Made of imported polymer engineering plastics
Features: Good physical and mechanical properties, bright color, suitable for high temperature steaming yarn.
Note: According to customer requirements, there are two colors and different surface treatment forms.
Features: Good physical and mechanical properties, bright color, suitable for high temperature steaming yarn.
Note: According to customer requirements, there are two colors and different surface treatment forms.
|

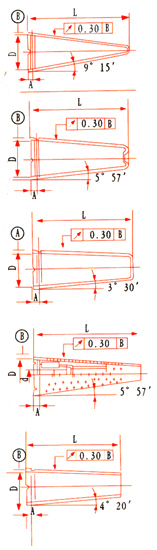

NO.
|
Size（）
|
Material
|
|||
|
L
|
D
|
Half cone angle
|
d
|
||
|
JLD.B-35
|
175
|
46
|
3°30'
|
(20)
|
PP.ABS
|
|
JLD.B-34
|
170
|
59
|
4°20'
|
(20)
|
PP.PC
|
|
JLD.B-17
|
170
|
68
|
5°57'
|
(20)
|
PP.ABS
|
|
JLD.B-32
|
170
|
63
|
5°57'
|
(20)
|
PP.PC
|
|
JLD.B-41
|
177
|
56
|
5°57'
|
(20)
|
PP.ABS
|
|
JLD.B-19
|
170
|
68
|
5°57'
|
(20)
|
PP.ABS
|
|
JLD.B-16
|
177
|
63
|
5°57'
|
(20)
|
PP
|
|
JLD.B-15
|
173
|
62 |
5°57'
|
(20)
|
PP
|
|
JLD.B-39
|
177
|
54
|
5°57'
|
(20)
|
PP.ABS
|
|
JLD.B-44
|
175
|
65
|
9°15'
|
(20)
|
PP
|
