Warp tube
Details
：
Material: Made of imported polymer engineering plastics
Features: It has bending resistance, impact resistance and high temperature resistance. High speed operation of 18000-22000 revolutions per minute, no deformation, no tube jumping, smooth surface, bright color, etc., suitable for steaming process.
Note: According to customer requirements, there are various types of wire grooves, crisscross lines, yarn cutting grooves, and color head types.
Features: It has bending resistance, impact resistance and high temperature resistance. High speed operation of 18000-22000 revolutions per minute, no deformation, no tube jumping, smooth surface, bright color, etc., suitable for steaming process.
Note: According to customer requirements, there are various types of wire grooves, crisscross lines, yarn cutting grooves, and color head types.
|
NO.
|

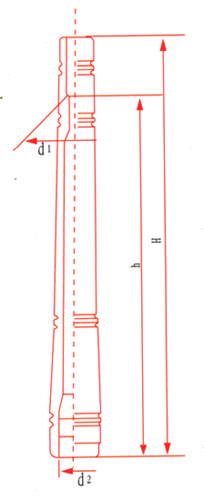

Size（）
|
Material
|
|||
|
H
|
d1
|
h
|
d2
|
||
|
JLD.J-01
|
180
|
4.23
|
152
|
16.40
|
PC.ABS
|
|
JLD.J-02
|
180
|
4.23
|
147
|
16.40
|
PC.ABS
|
|
JLD.J-03
|
180
|
5.08
|
165.5
|
16.40
|
PC.ABS
|
|
JLD.J-04
|
180
|
5.08
|
165.5
|
16.40
|
PC.ABS
|
|
JLD.J-09
|
190
|
4.23
|
152
|
16.40
|
PC.ABS
|
|
JLD.J-10
|
190
|
4.23
|
147
|
16.40
|
PC.ABS
|
|
JLD.J-11
|
190
|
5.08
|
165.5
|
16.40
|
PC.ABS
|
|
JLD.J-28
|
205
|
6.11
|
177.5
|
17.0
|
PC.ABS
|
|
JLD.J-29
|
210
|
6.02
|
174
|
16.40
|
PC.ABS
|
|
JLD.J-20
|
230
|
6.11
|
177.5
|
17.0
|
PC.ABS
|
|
JLD.J-24
|
232
|
6.11
|
185
|
17.90
|
PC.ABS
|
